信號源

TSG4100A 系列 RF 信號發生器以入門級射頻信號發生器的價格提供中等射頻性能和高達 200MHz 的超寬調制帶寬。方便的現場升級軟件允許工程師輕松將設備的模擬調制功能升級為矢量調制和數字調制功能，從而提供靈活的配置和的 CAPEX 保護。

快速聯系我們

用于模擬和數字應用的 RF 信號發生器

TSG4100A 系列 RF 信號發生器同時具有模擬和更的矢量和數字調制功能，成本非常低。工程師可以簡便地從模擬信號轉向矢量信號，從而提供靈活的配置和的 CAPEX 保護。這些低成本 RF 信號發生器內置支持常見的矢量調制方案，包括 ASK、QPSK、DQPSK、π/4 DQPSK、8PSK、FSK、CPM、QAM（4 至 256）、8VSB 和 16VSB。

rf-signal-generator_screen

i-q-contellation

內部帶寬高達 6MHz 的射頻信號發生器

憑借創新的 I/Q 調制架構，用戶友好的 TSG4100A 系列提供快速波形生成并支持純數字?jǐn)?shù)據的播放。儀器以高達 6 MHz 的符號速率把數字符號映射到選定的 I/Q 星座中，把結果傳送到選定的脈沖整形濾波器中，生成以 125 MHz 實時更新的終波形。然后這個基帶信號使用標準 IQ 調制技術調制到 RF 載波上。

使用 RF 信號發生器的 OCXO 時基

TSG4100A 系列儀器使用恒溫箱控制的 SC 切割晶振時基，穩定性提高了 100 倍 (<±0.002ppm)，與使用 TCXO 時基的儀器相比，近距離相位噪聲降低了 100 倍。還可以為研發應用提供的時效 (<±0.05ppm)。

afg3100_to_tsg4100a

ocxo-time-base

TSG4100A 射頻信號發生器上的 RF 信號播放

TSG4100A RF 信號發生器具有使用外部 IQ 信號的選項，該選項可為高載波頻率（如 400MHz 以上的載波頻率）提供 200MHz 以上的射頻調制帶寬。了解如何使用通過 RSA 捕獲的 RF 信號以及 SourceXpress 應用程序格式化基帶 IQ 信號，然后了解如何設置 AFG31000 任意函數發生器以驅動 TSG 上的 IQ 輸入。

使用AFG3100再TSG4100A上播放捕捉的RF信號

RF 信號發生器常見問題

RF 信號發生器的用途是什么？

RF-Signal-Generator

射頻 (RF) 信號發生器用于創建具有已知特性的連續射頻信號，以測試電路設計，主要是通信設備中的電路設計。RF 信號發生器本身不進行任何測量，它只是為其他儀器設置正確的條件來測量被測設備。

RF 發生器如何工作？

RF 信號發生器通常是一種信號源，用于測試開發用于 RF 通信（例如無線和蜂窩通信、雷達、電子戰等）的電路。工程師可以使用系統控制設置幅度、頻率并對信號應用調制。

如何生成 RF 頻率？

生成 RF 頻率的簡單方法是使用 TSG4100A RF 信號發生器的前面板。在將 RF 信號發生器連接至被測設備 (DUT) 前，您可以輕松設置頻率、幅度、調制和許多其他信號特性。

信號發生器和函數發生器有何區別？

信號發生器是任何產生電子信號的設備。矢量信號發生器專門使用模擬和數字調制方案以 QAM、QPSK、FSK、BPSK 和 OFDM 等格式創建射頻信號。矢量信號發生器通常用于接收機靈敏度測試。

函數發生器具有其可播放的預設波形或模式列表。操作員可以更改波形參數，例如播放速度、幅度和偏置，或添加基本失真或調制。

信號發生器的類型有哪些？

信號發生器的類型有很多，包括函數發生器、任意波形發生器和矢量信號發生器。

查看下表了解每種類型之間的差異。

信號發生器	模擬和數字電子信號源的通用類別名稱。
函數發生器	如需正弦波、三角波等常見波形，則通常使用信號發生器。
任意函數發生器	函數發生器能夠產生任意編譯波形。
任意波形發生器	如需自定義編譯波形（而不是預設常用波形），則主要使用任意波形發生器。
RF 信號發生器	RF 信號發生器用于無線應用，通常提供正常的模擬調制，例如 AM、FM 和 PM。
(RF) 矢量信號發生器	對于數字通信應用，RF 矢量信號發生器支持對 RF 載波進行模擬和矢量調制。

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Frequency

BNC output, all models
DC to 62.5 MHz
N-type outputs

TSG4102A
950 kHz to 2.0 GHz
TSG4104A
950 kHz to 4.0 GHz
TSG4106A
950 kHz to 6.0 GHz

Frequency resolution
1 μHz at any frequency

Switching speed
<8 ms (to within 1 ppm)

Frequency error
<(10–18 + time-base error) × fc

Frequency stability
1 × 10–11 (1 s Allan variance)

Front panel BNC output

Frequency range
DC to 62.5 MHz

Amplitude
1.00 VRMS to 0.001 VRMS (-47 dBm to +14.96 dBm)

Offset
±1.5 VDC

Offset resolution
5 mV

Maximum excursion
1.817 V (amplitude + offset)

Amplitude resolution
<1 %

Amplitude accuracy
±0.7 dB

Harmonics, typical
<–40 dBc

Spurious, typical
<–65 dBc

Output coupling
DC, 50 Ω ±2%

Impedance
50 Ω

Reverse protection
±5 VDC

VSWR, typical
< 1.6 :1

Front panel N-type output

Power output

TSG4102A
+16.5 dBm to –110 dBm
TSG4104A
+16.5 dBm to –110 dBm (<3 GHz)
TSG4106A
+16.5 dBm to –110 dBm (<4 GHz) +10 dBm to –110 dBm (4-6 GHz)

Voltage output

TSG4102A
1.5 VRMS to 0.7VRMS
TSG4104A
1.5 VRMS to 0.7 μVRMS (<3 GHz)
TSG4106A
1.5 VRMS to 0.7 μVRMS (<4 GHz)

Amplitude resolution
0.01 dBm

Amplitude accuracy

CW, 50 Ω load (dB, typical)

CW, 18 °C to 28 °C	>10 dBm	10 to -30 dBm	-30 to -60 dBm	-60 to -100 dBm	<-100 dBm
10 MHz to 0.1 GHz	±0.2	±0.25	±0.35	±0.45	±0.6
0.1 GHz to 2 GHz	±0.15	±0.15	±0.25	±0.35	±0.6
2 GHz to 4 GHz	±0.3	±0.2	±0.35	±0.6	±0.8
4 GHz to 6 GHz	NA	±0.3	±0.4	±0.75	±1.25

CW, 50 Ω load (dB, max)

Level range:	+5 to -30 dBm (max)	+5 to -30 dBm (typical)
Temperature:	18 °C to 28 °C	5 °C to 40 °C	5 °C to 40 °C
10 MHz to 0.1 GHz	±0.6	±1.0	±0.7
0.1 GHz to 2 GHz	±0.6	±1.0	±0.6
2 GHz to 4 GHz	±0.6	±1.0	±0.7
4 GHz to 6 GHz	±1	±1.5	±0.9

Impedance
50 Ω

Output coupling
AC, 50 Ω

VSWR, typical
<1.5 (2 MHz to 2 GHz) <1.8 (2 GHz to 6 GHz)

Reverse protection
30 VDC, +25 dBm

IQ modulation output level accuracy
Output amplitude is -5 dBm.
Temperature: 18 °C to 28 °C 5 °C to 40 °C
Fc: Typical (dB) Max (dB) Typical (dB)
<2 GHz ±0.1 ±0.4 ±0.4
2 GHz to 4 GHz ±0.2 ±0.6 ±0.4
4 GHz to 6 GHz ±0.4 ±0.8 ±0.7

Temperature:	18 °C to 28 °C	5 °C to 40 °C
<2 GHz	±0.1	±0.4	±0.4
2 GHz to 4 GHz	±0.2	±0.6	±0.4
4 GHz to 6 GHz	±0.4	±0.8	±0.7

Spectral purity of the RF output

Subharmonics
None

Harmonics, maximum
Output level<0 dBm, 1 GHz CW signal

TSG4102A and TSG4104A
< -38 dBc
TSG4106A
< -30 dBc

Harmonics, typical (output level < 0 dBm)
< -35 dBc, CW , Fc < 2 GHz

Spurious (typical)
Output level -10 dBm, CW

< -68 dBc
>10 kHz from carrier in 950 kHz to 1 GHz
< -60 dBc
>10 kHz from carrier in 1 GHz to 2 GHz
< -55 dBc
>10 kHz from carrier in 2 GHz to 4 GHz
< -55 dBc
>10 kHz from carrier in 4 GHz to 6 GHz

Residual FM, typical
1 Hz rms (300 Hz to 3 kHz bandwidth)

Residual AM, typical
0.006 % rms (300 Hz to 3 kHz bandwidth)

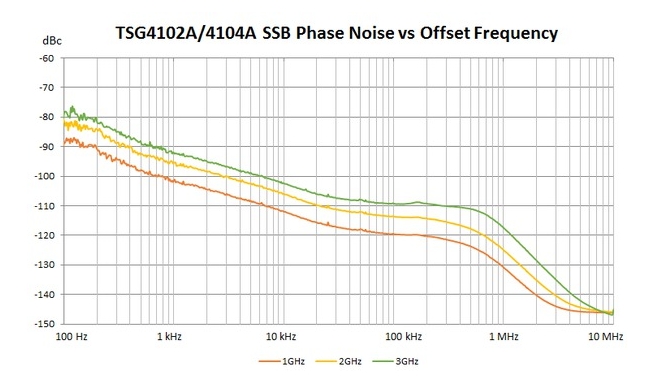

SSB phase noise
Output level is +5 dBm at 18 °C to 28 °C.
Carrier Offset from carrier, typical (dBc/Hz)

1 kHz 10 kHz 20 kHz 1 MHz
1 GHz -102 -110 -113 -124
2 GHz -96 -104 -107 -118
3 GHz -93 -102 -105 -120
6 GHz -87 -96 -99 -114

Carrier	Offset from carrier, typical (dBc/Hz)
1 GHz	-102	-110	-113	-124
2 GHz	-96	-104	-107	-118
3 GHz	-93	-102	-105	-120
6 GHz	-87	-96	-99	-114

SSB phase noise at 1 GHz carrier, maximum (output level +5 dBm, 5 ℃ to 40 ℃)

1 kHz offset
–95 dBc/Hz
10 kHz offset
–106 dBc/Hz
20 kHz offset
–107 dBc/Hz
1 MHz offset
–120 dBc/Hz
2 GHz offset
–118 dBc/Hz
>3 GHz offset
–120 dBc/Hz

Phase setting (front panel outputs)

Maximum phase step
±360o

Phase resolution
0.01o (DC to 100 MHz) 0.1o (100 MHz to 1 GHz) 1.0o (1 GHz to 6 GHz)

OCXO time-base (Option M00 or Option E1)

Oscillator type
Oven-controlled, 3rd OT, SC-cut crystal

Initial accuracy at calibration (20 minute warm-up, at 18 oC to 28 oC)
<±0.02 ppm

Temperature drift (0 oC to 40 oC)
<±0.003 ppm

Aging
<±0.05 ppm/year

VCXO time base (Option M01)

Initial accuracy at calibration (20 minute warm-up, at 18 oC to 28 oC)
<±0.5 ppm

Temperature drift (0 oC to 40 oC)
<±5.0 ppm

Aging
<±3.0 ppm/year

Time-base input

Frequency
10 MHz, ±2 ppm

Amplitude
0.5 VP-P to 4 VP-P (–2 dBm to +16 dBm)

Input impedance
50 Ω, AC coupled

Time-base output

Frequency
10 MHz, sine

Source
50 Ω, DC transformer coupled

Amplitude
>7.5 dBm

Internal modulation source

Waveforms
Sine, ramp, saw, square, pulse, noise

Sine THD
–74 dBc (typical at 20 kHz)

Ramp linearity
<0.05 % (1 kHz)

Rate

TSG4102A and TSG4104A
1 μHz to 500 kHz: < 62.5 MHz CF 1 μHz to 50 kHz: ≥62.5 MHz
TSG4106A
1 μHz to 500 kHz: < 93.75 MHz CF 1 μHz to 50 kHz: ≥93.75 MHz

Rate resolution
1 μHz

Rate error
1:231 + time-base error

Noise function
White Gaussian noise (rms = dev / 5)

Noise bandwidth
1 μHz < ENBW < 50 kHz

Pulse generator period
1 μs to 10 s

Pulse generator width
100 ns to 9999.9999 ms

Pulse timing resolution
5 ns

Pulse noise function
Length 2N-1 PRBS 5 ≤ N ≤ 32, bit period 100 nS to 10 S

Analog modulation output

Connector type
BNC (rear panel)

Impedance
50 Ω

Function
AM, FM, ΦM, Pulse

Scale factor
±1 V for ± full deviation

Pulse/Blank
Low = 0 V Hi = 3.3 V

External analog modulation input

Connector type
BNC (rear panel)

Impedance
100 kΩ

Function
AM, FM, ΦM, Pulse

Scale factor
±1 V for ± full deviation

Pulse/Blank
Low = 0 V Hi = 3.3 V

Input coupling
DC or 4 Hz High-pass

Pulse Threshold
+1 VDC

Input Offset
< 500 μV

Amplitude modulation

Range
0 to (decreases above +7 dBm)

Resolution
0.1%

Modulation source
Internal or external

Modulation distortion, typical

BNC output
<1 % (fc < 62.5 MHz, fm = 1 kHz)
N-type output

Modulation bandwidth (external)
>100 kHz

Frequency modulation

Minimum frequency deviation
0.01 Hz

Maximum frequency deviation

TSG4102A and TSG4104A

Smaller of fc and 64 MHz – fc. In 0 to 62.5 MHz

Frequency range	Maximum deviation
62.5 MHz < fc ≤ 126.5625 MHz	1 MHz
126.5625 MHz < fc ≤253.1250 MHz	2 MHz
253.1250 MHz < fc ≤ 506.25 MHz	4 MHz
506.25 MHz < fc ≤ 1.0125 GHz	8 MHz
1.0125 GHz < fc ≤ 2.0 GHz	16 MHz
2.025 GHz < fc ≤ 4.0 GHz (TSG4104A)	32 MHz

TSG4106A

Smaller of fc and 96 MHz – fc. In 0 to 93.75 MHz

Frequency range	Maximum deviation
93.75 MHz < fc ≤ 189.84375 MHz	1 MHz
189.84375 MHz < fc ≤ 379.6875 MHz	2 MHz
379.6875 MHz< fc ≤ 759.375 MHz	4 MHz
759.375 MHz < fc ≤ 1.51875 GHz	8 MHz
1.51875 GHz < fc ≤ 3.0375 GHz	16 MHz
3.0375 GHz < fc ≤ 6.0 GHz	32 MHz

Deviation resolution
0.1 Hz

Deviation accuracy, typical

TSG4102A and TSG4104A
< 0.1% of selected deviation + 5 Hz (fc < 62.5 MHz) < 2% of selected deviation + 20 Hz (fc > 62.5 MHz)
TSG4106A
< 0.1% of selected deviation + 5 Hz (fc < 93.75 MHz) < 2% of selected deviation + 20 Hz (fc > 93.75 MHz)

Modulation source
Internal or external

Modulation distortion, typical
< -60 dB (fc=100 MHz, fm=1 KHz, fd= 3 KHz)

External FM carrier offset, typical
< ±0.001 X FM deviation

Modulation bandwidth, typical

TSG4102A and TSG4104A
500 kHz (fc < 62.5 MHz) 100 kHz (fc > 62.5 MHz)
TSG4106A
500 kHz (fc < 93.75 MHz) 100 kHz (fc > 93.75 MHz)

Phase modulation

Deviation
0o to 360o

Deviation resolution, typical
0.01o (DC to 100 MHz) 0.1o (100 MHz to 1 GHz) 1o (1 GHz and above)

Deviation accuracy, typical

TSG4102A and TSG4104A
2% (fc < 62.5 MHz) 3% (fc > 62.5 MHz)
TSG4106A
2% (fc < 93.75 MHz) 3% (fc > 93.75 MHz)

Modulation source
Internal or external

Modulation distortion, typical
< -60 dB (fc = 100 MHz, fm =1 kHz, ΦD = 50o)

Modulation bandwidth, typical

TSG4102A and TSG4104A
500 kHz (fc < 62.5 MHz) 100 kHz (fc > 62.5 MHz)
TSG4106A
500 kHz (fc < 93.75 MHz) 100 kHz (fc > 93.75 MHz)

Pulse modulation

Pulse mode
Logic High turns RF output ON

On-Off ratio, typical

BNC output
> 70 dB
Type-N output
> 57 dB (fc < 1.0 GHz) > 40 dB (1.0 GHz ≤ fc < 4.0 GHz) > 35 dB (4.0 GHz ≤ fc < 6.0 GHz)

Pulse feed-through, typical
10% of carrier for 20 ns at turn on

Turn On-Off delay
60 ns

RF Rise-Fall time, typical
20 ns

Modulation source
Internal or external pulse

Interface connectors

USB
USB 2.0, host

Ethernet (LAN)
10/100 Base-T.TCP/IP and DHCP default

GPIB
IEEE488.2

RS-232
4800 to 115,200 baud, RTS/CTS flow

External I/Q modulation (Option EIQ)

Carrier frequency range
400 MHz to 2.0 GHz (TSG4102A) 400 MHz to 4.0 GHz (TSG4104A) 400 MHz to 6.0 GHz (TSG4106A)

I/Q inputs (rear panel)
50 Ω, ±0.5 V

I/Q full scale input
(I2 + Q2)1/2 = 0.5 V

Modulation bandwidth
max 400 MHz RF bandwidth

I or Q input offset
<500 μV

Carrier suppression
> -45 dBc for fc ≤ 3 GHz > -40 dBc for 3 GHz < fc ≤ 5 GHz > -35 dBc for fc > 5 GHz

I and Q baseband modulation bandwidth (3 dB from fc)
> 200 MHz (fc < 2.5 GHz, RF BW >400 MHz) > 150 MHz (fc > 2.5 GHz, RF BW >300 MHz)

Dual baseband generator (Option VM00)

Channels
2 (I and Q)

DAC data format
Dual 14-bit at 125 MS/s

Reconstruction filter
10 MHz, 3rd order Bessel LPF

Arbitrary symbol memory
Up to 16 Mbits

Symbol rate
1 Hz to 6 MHz (1 μHz resolution)

Symbol length
1 to 9 bits (maps to constellation)

Symbol mapping
Default or user-defined constellation

Symbol source (User-defined symbols, built-in PRBS generator, or settable pattern generator)

PRBS length
2n – 1 (5 < n < 32; 31 to about 4.3 × 109 symbols)
Pattern generator
16 bits

Digital filtering

Filter type
Raised Cosine, Root Raised Cosine, Gaussian, Rectangular, Linear, Sinc, linearized Gaussian, C4FM, customized FIR
Filter length
24 symbols

Noise impairments

Additive noise
White, Gaussian
Level
–70 dBc to –10 dBc

Basic vector modulation formats (Option VM00)

Formats by bit
Constellation 1-bit 2-bit 3-bit 4-bit 5-bit 6-bit 8-bit
ASK 2ASK 4ASK 8ASK 16ASK

FSK BFSK 4FSK 8FSK 16FSK

PSK BPSK QPSK 8PSK 16PSK

QAM n/a 4QAM n/a 16QAM 32QAM 64QAM 256QAM
CPM BCPM 4CPM 8CPM 16CPM

VSB n/a n/a 8VSB 16VSB

Constellation	1-bit	2-bit	3-bit	4-bit	5-bit	6-bit	8-bit
ASK	2ASK	4ASK	8ASK	16ASK
FSK	BFSK	4FSK	8FSK	16FSK
PSK	BPSK	QPSK	8PSK	16PSK
QAM	n/a	4QAM	n/a	16QAM	32QAM	64QAM	256QAM
CPM	BCPM	4CPM	8CPM	16CPM
VSB	n/a	n/a	8VSB	16VSB

Others
OQPSK, DQPSK, π/4DQPSK, 3π/8 8 PSK

Digital modulation applications (typical)

Digital modulation applications options
Option Application
VM01 GSM
VM02 GSM-EDGE
VM03 W-CDMA
VM04 APCO-25 Phase 1
VM05 DECT
VM06 NADC
VM07 PDC
VM08 TETRA
VM10 Audio clip (analog AM and FM)

Option	Application
VM01	GSM
VM02	GSM-EDGE
VM03	W-CDMA
VM04	APCO-25 Phase 1
VM05	DECT
VM06	NADC
VM07	PDC
VM08	TETRA
VM10	Audio clip (analog AM and FM)

Option VM01 GSM, (GMSK, 270.833 kS/s, 935 MHz, 0 dBm), RMS EVM: 0.6%

Option VM02 GSM-EDGE, (3π/8 8PSK, 270.833 kS/s, 935 MHz, 0 dBm), RMS EVM: 0.30%

Option VM03 W-CDMA, (QPSK,3.840Mcps, 2.1425GHz, 0dBm), RMS EVM: 1.7%

Option VM03 W-CDMA (QPSK,3.840Mcps, 1.85 GHz, 0dBm), RMS EVM: 1.7%
